SEP120HEZ | 120 CFM, 0.3 Sone | Humidity Sensing | EZ Install No Attic Access Retrofit Install

Model: SEP120HEZ

AirFlow: 120 CFM (Cubic Feet per Minute)
Loudness: 0.3 sones
Bathroom size: Up to 120 sqft

Features:

• CEILING OPENING SIZE - Please note the ceiling opening requirement is 12 x 11 1/2 inch, resizing your existing ceiling opening will be needed if existing fan housing is different.
• SUPER QUIET - Barely audible sound level of less than 0.3-Sones at 120-CFM. Suitable for bathroom size up to 120 square feet.

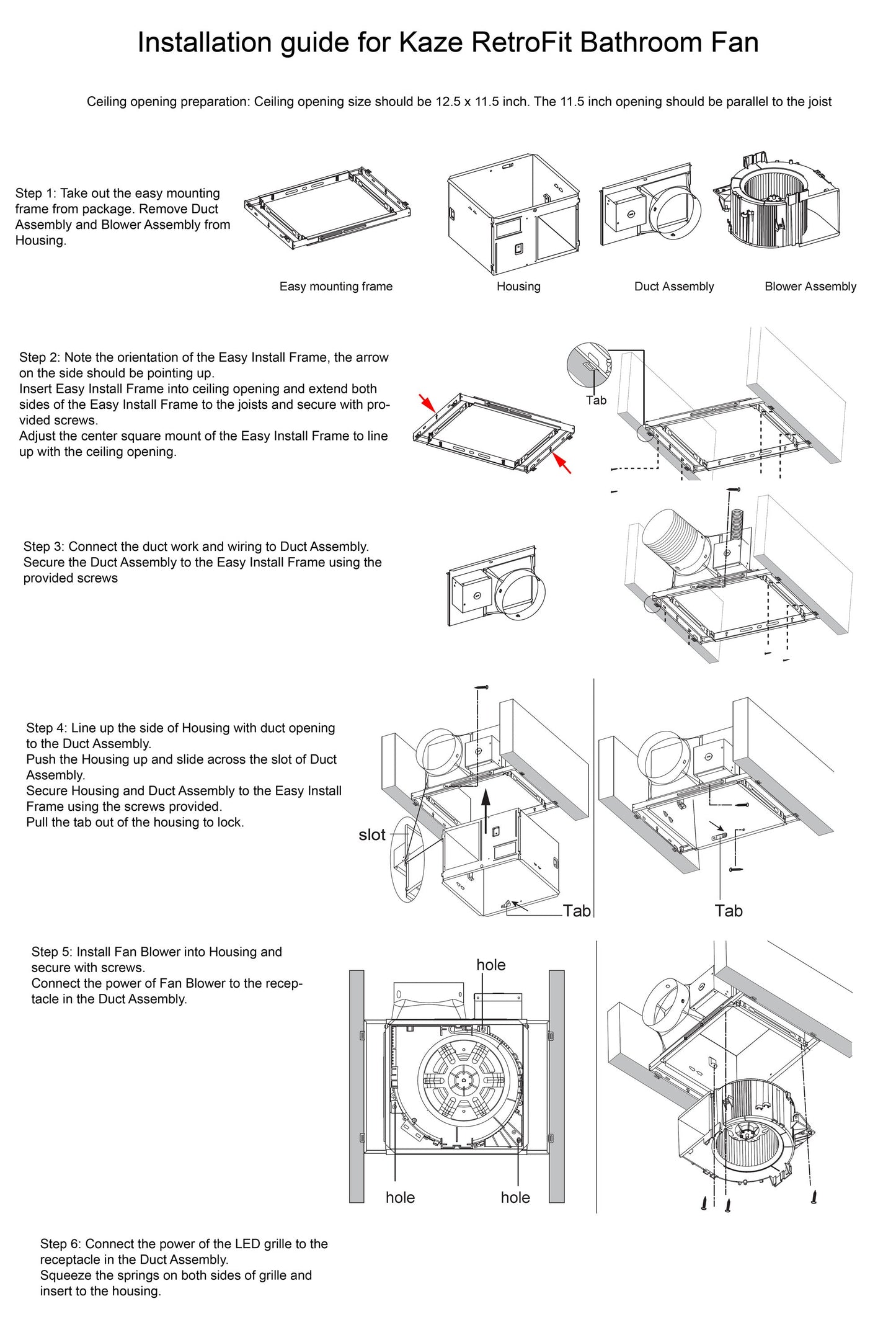

• INSTALLATION - No Attic Access Required. See photos for installation instructions
• HUMIDITY SENSING - Automatically switch on/off the fan unit to maintain desirable humidity level and hands free operation.
• DUCTING - Removable 6 inch metal duct adapter with back draft prevention damper.

• RELIABILITY - Proudly stand behind our products with 3 year warranty.

KAZE Appliance is proud to announce SEP120HEZ. Designed to install from below the ceiling without the need to go up to the attic to connect ducting and wiring. Re-engineered one piece blower assembly with built in 6 inch duct adapter further improves stability and reliability. SEP120HEZ not only ventilates the air in your room, but also equipped with Humidity Sensor to automatically switch on/off the fan unit to maintain desirable humidity level and hands free operation.
Humidity Sensing
Humidity sensing fan uses a sophisticated humidity sensor that responds to:
(1) moderate to rapid increase in humidity or (2) humidity above a user-adjustable set-point (50% to 100% relative humidity)
Delay Timer
The SEP120HEZ is also equipped with an adjustable delay timer (5-30 minutes) that provides additional run time for the fan to complete the remaining necessary ventilation after the sensor has stopped sensing a rise in humidity and the humidity level is below the user setting.

The fan unit is built with high-quality components and permanently lubricated motors to give continuous, trouble-free operation. The electrical configuration of the condenser motor is designed to operate at lower temperatures, thus increasing the life of the motor and bearings. The redesigned resin housing allows extra operation stability and prevent rusting. . Heavy duty triple point mounting brackets can be adjusted up to 24-inch joist centers for easy, fast and universal installation in different types of constructions.
Peace of mind quality, performance and reliability.

Housing dimension: 11 3/8 by 10 1/2 by 7 5/8 inch.
Grill dimension: 13 by 14 inches polymeric resin
Voltage/ frequency: 120Volt/60Hz.

SEP120HEZ Instruction Manual
